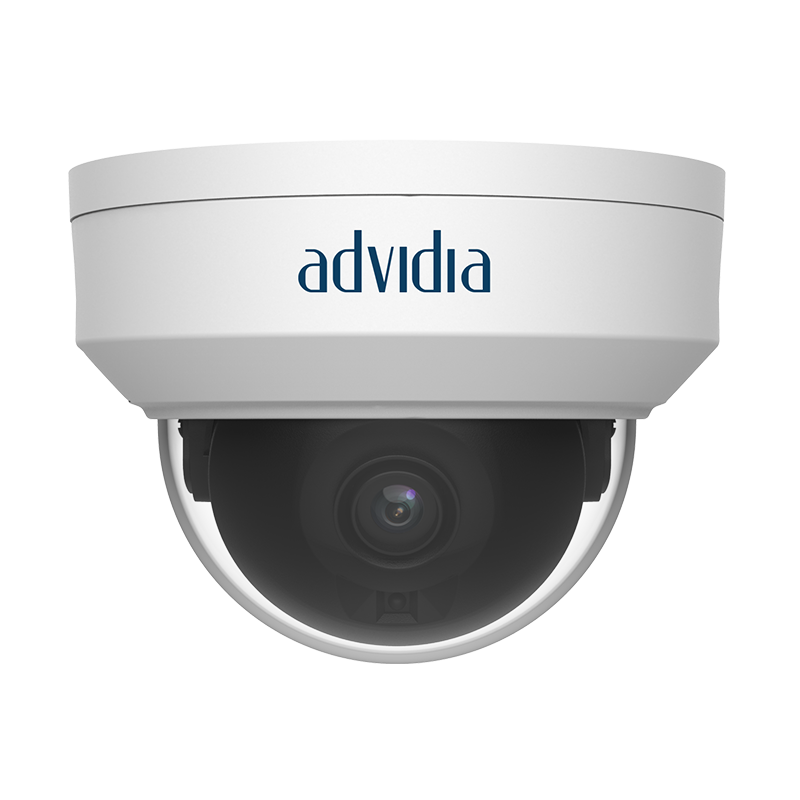

Advidia M-46-F-V2

4MP Vandal Resistant Outdoor Dome Network Camera

Only available in US/APAC

  • 4MP
  • WDR 120dB
  • Built-in IR LED
  • Built-in mic
  • 4.0 mm lens
  • IP67
  • IK10
  • VideoInsight VMS license bundled
ENQUIRE NOW

Key Features

4MP Outdoor Fixed Dome Camera

Specifications

Device

COMPONENT SPECIFICATION
Image Sensor 1/2.7", 5.0 Megapixel, Progressive Scan, CMOS
Min Illumination Color: 0.003Lux (F1.6, AGC ON) | 0Lux with IR
Shutter Time Auto/Manual, 1 ~ 1/100000s
Lens 4.0mm@F1.6
WDR 120dB
Angle of View H: 91.2°, V: 47.9°, O: 95.9°
Angle Adjustment Pan: 8° ~ 360° Tilt: 0° ~ 68° Rotate: 10° ~ 360°
3-Axis Adjustment Yes
Day & Night IR-Cut Filter with Auto Switch (ICR)
IR Range Up to 30m (98ft) IR range

Compression Standard

COMPONENT SPECIFICATION
Video Compression Ultra 265, H.265, H.264, MJPEG
Video Bit Rate 128 Kbps~16 Mbps
Dual Streams Yes
Analytics Cross line, Intrusion, Human Body Detection, Motion Detection,
Tampering Alarm, Audio Detection


COMPONENT SPECIFICATION
Max. Image Resolution 2688 x 1520
Frame Rate 25fps (2688 x 1520)
ROI Codec Up to 8 Areas
Image Setting White Balance, Image Setting, Digital Noise Reduction, Smart IR, Flip,
HLC, BLC, Defog

Network

COMPONENT SPECIFICATION
Alarm Channels N/A
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP,
UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP

Interface

COMPONENT SPECIFICATION
Communication Interface 1 RJ45 10M/100M Base-TX Ethernet
Local Storage Micro SD, up to 256GB
Audio Built-in Mic

General

COMPONENT SPECIFICATION
Safety CE: EN 60950-1,
UL: UL60950-1,
IEC 60950-1
EMC FCC: FCC Part15
Operating Conditions Temperature: -30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (Non-Condensing)
Power Consumption Max 4.5W
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Weather Proof Rating IP67
Vandal Resistant IK10
Dimensions Φ109 x 83mm (Ø4.3” x 3.3”)
Weight 0.36kg (0.79lb)
Software Includes Video Insight VMS License
