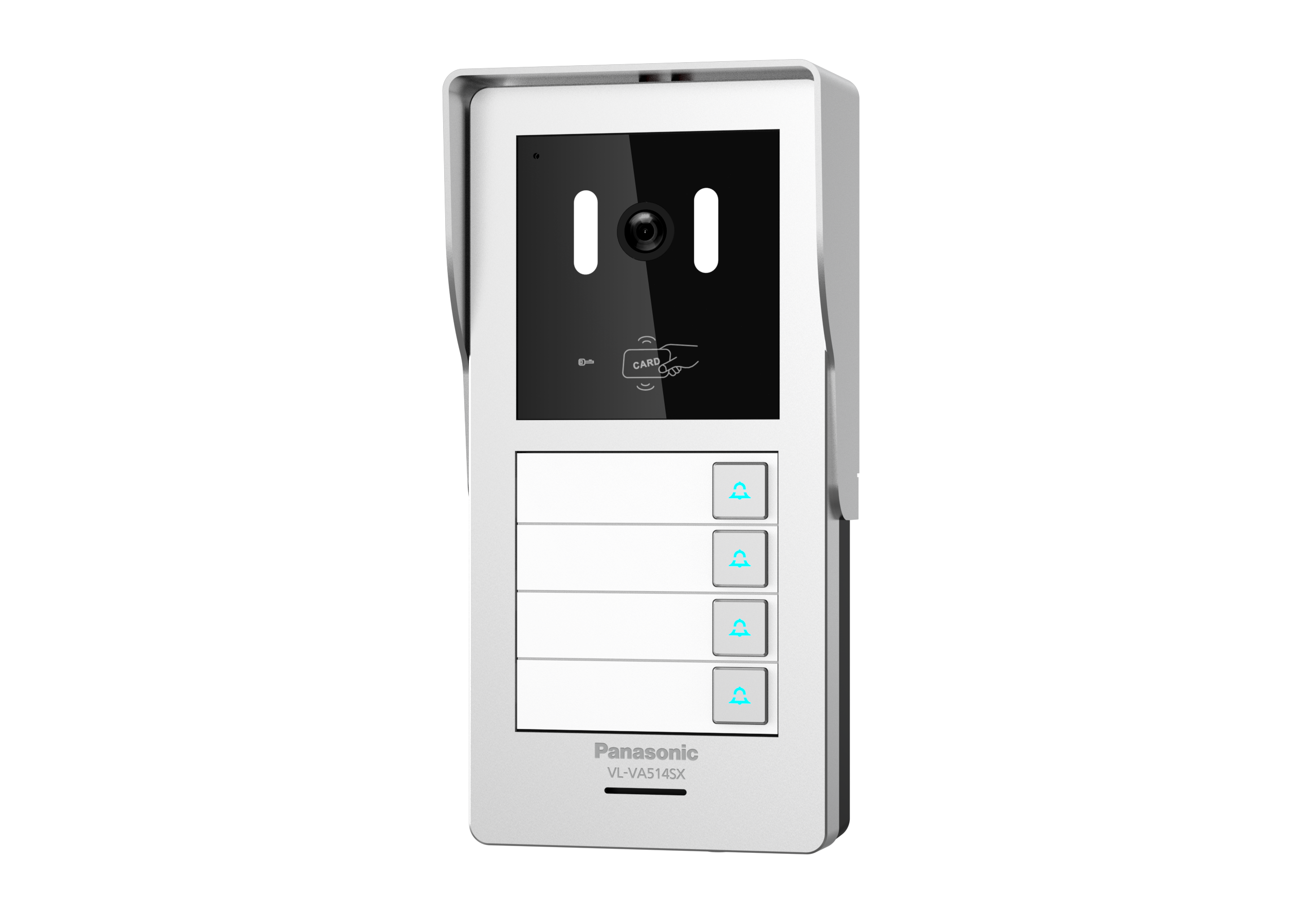

VL-VA514
4-Button Door Station (Doorphone)
4-Button Door Station (Doorphone for Multi-Floor Video Intercom System)
Key Features
- Handsfree Video Intercom
- Support Multi Floor System (upto 4 floors)
- High Definition Door Camera with 2MP Resolution
- Works with 2 layer security
- Supports both Analog and Hybrid Monitors* (toggle switch for Analog and Hybrid Modes)
- Weather Proof with IP65 Rating
- Vandal Proof with IK10 Rating
- Color Night Vision with White
- Built-in Omnidirectional Microphone
- Noise Suppression, Echo Cancellation
- RFID Card Unlock Support
Specifications
| Model Number & Model Name | VL-VC3900BX-E Lobby Station |
| Model number and name | VL-VA514 4-Button Door Station (Doorphone) |
|---|---|
| Power source | DC 14.5V 1A, 50/60 Hz |
| Power consumption | Standby: <3.0 W, Operating: <10.0 W |
| Dimensions (H x W x D) | (Excluding protruding sections) 182 x 91 x 43 mm |
| Weight | 351 g |
| Operating environment | Ambient temperature: Approx. -20 °C to +70 °C Relative humidity (non-condensing): 10 % to 90 % |
| Tamper Support | Yes |
| Supported Models | Supports Monitors from models: VL-SA71SX, VL-SA72SX & VL-SA611SX* (* Use Toggle switch to choose AHD or Analog Monitor) |
| Analog/Hybrid VDP Support | Toggle Switch button for choosing AHD and Analog model monitor |
| Talking method | Hands-free |
| Audio Quality | Noise Suppression, Echo Cancellation |
| Audio Input | Built-in Omnidirectional Microphone |
| Viewing Angle | Diagonally: Approx. 155˚ Horizontally: Approx. 120˚ Vertically: Approx. 60˚ |
| Camera Resolution | 1/3" CMOS with 2MP Lens |
| Stream Resolution (video) | CVBS : 720 X 576 / AHD : 1024 X 600 |
| Stream Resolution (image) | CVBS : 720 X 288 / AHD : 1024 X 600 |
| Installation method | Surface Mount / Flush Mount |
| Lock Connection Relay | 1 Relay (No Com NC) |
| Minimum illuminance required | 1 lx (within approx. 50 cm from the camera lens) |
| Lighting method | White LED |
| IP rating / IK rating | IP65 / IK10 |
