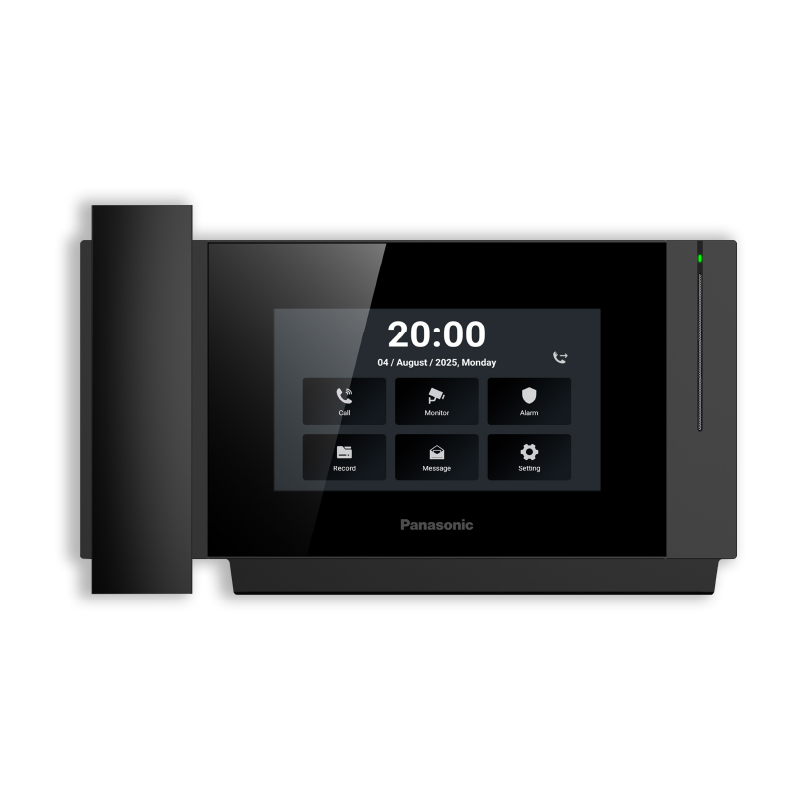

VL-VQ7000SX
SIP Based Guard Station
Guard Station
- SIP Based Guard Station
- 7-inch TN LCD with capacitive Touch Screen
- Build-In Microphone& Loudspeaker
- Supports Emergency calls
- 3rd Party SIP device compatibility (SIP/Alarm/RTSP)
- Real-time Alarm Information from site/building
- POE 802.3af
Key Features
Guard Station
- SIP Based Guard Station
- 7-inch TN LCD with capacitive Touch Screen
- Build-In Microphone& Loudspeaker
- Supports Emergency calls
- 3rd Party SIP device compatibility (SIP/Alarm/RTSP)
- Real-time Alarm Information from site/building
- POE 802.3af
Specifications
| Category | Component | Specification |
|---|---|---|
| System parameters | Operation System | Android 12 |
| Display parameters | Display Type Operation Method Resolution |
7-inch Colour TN LCD Capacitive touch screen 1024 x 600 pixels |
| Video parameters | Video Codec Video Resolution Image Sensor View Angle Lighting Method Minimum Illuminance |
H.264 Main stream: FHD 1920 x 1080 (Optional: HD 720P , VGA) - - - - |
| Audio parameters | Audio Codec Audio Output Audio Input Audio Quality DTMF unlock |
G.711 Built-in loudspeaker Built-in omnidirectional microphone Noise suppression and echo cancellation - |
| Network Parameters | Wireless network Wiring Network Protocol |
- UTP (Cat 5e or higher) TCP/IP, SIP2.0, RTSP |
| Interface | Network Interface Power Output 12V DC input Relay Lock Wiegand Door Station Port 4-wire input Alarm In Alarm Out (Power Output) Micro SD Card Speaker volume knob CAM standard switch Exit button |
1(RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)) - 1 - - - - - - - - - - - |
| Unlock way | Unlock way Face Recognition Capacity RFID (Capacity) RFID to unlock |
- - - - |
| Capacity | Linked IP Camera Text Messages Voice Messages Intercom Logs Alarm Logs Recording |
Yes (Up to 32) Y (up to 100) N Y (up to 100 ) Y (up to 500 ) Y (100 pcs for picture recording) |
| General | Power Source Operating Voltage Current Rating Power Consumption Installation Colour Dimensions (ｍｍ) (H x W x D) Working Temperature Storage Temperature Relative Humidity Ingress Protection Inverse Kinematics Display Language Tamper alarm Motion Detect Face liveliness check External Material Weight |
PoE (IEEE 802.3af compliant, Class 0 device) / DC adaptor 48V POE / 12V DC POE 48V, 0.16A / DC 12V, 0.64A Standby: 1.5 W, Maximum: 7.7 W Desktop Black 30 x 312 x 168 115 x 312 x 185 with handset and stand from table -10 ℃ to +55 ℃(14 ℉ to 131 ℉) -20 ℃ to +60 ℃(-4 ℉ to 140 ℉) 10% to 90% RH - - English - - - Aluminum alloy 1.7 kg |
