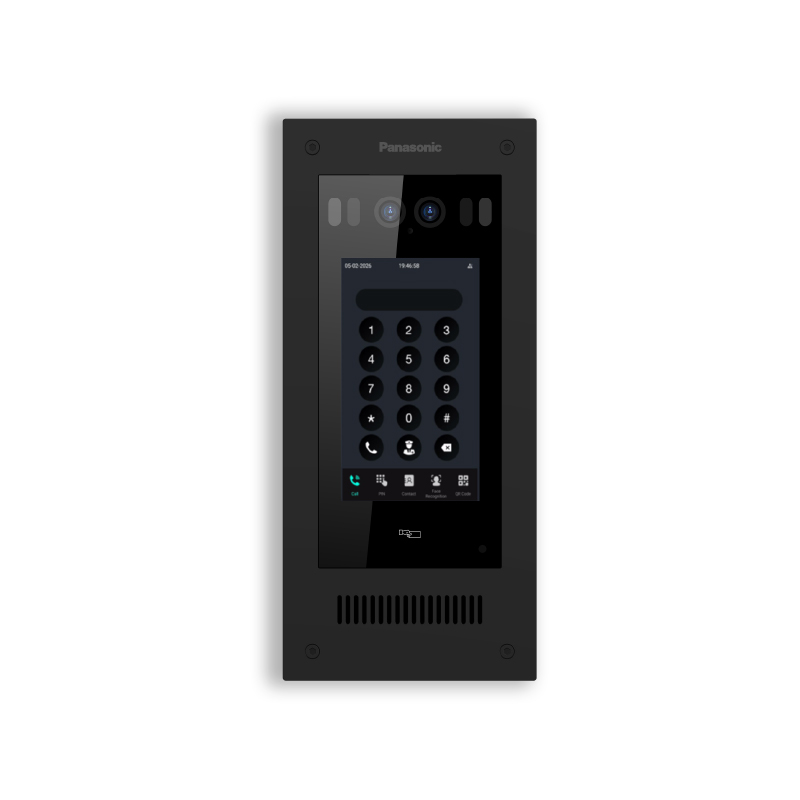

VL-VQ9000SX
Lobby Display Station
Lobby Display Station with 7" Screen for IP SIP VDP
- 7-inch IPS LCD with Touch Panel
- Dual 2MP Camera for High-Definition Video & Images
- Multiple Access Control – Face, IC cards, QR Code, Password, Smartphone
- Face Recognition (up to 10,000)
- Night Vision with Automatic LED Lights
- Aluminum Housing with IP65& IK07 rating
- Supports 2 NO/NC Locks,3 Exit buttons
- 3rd Party SIP device compatibility
Key Features
- 7-inch IPS LCD with Touch Panel
- Dual 2MP Camera for High-Definition Video & Images
- Multiple Access Control – Face, IC cards, QR Code, Password, Smartphone
- Face Recognition (up to 10,000)
- Night Vision with Automatic LED Lights
- Aluminum Housing with IP65& IK07 rating
- Supports 2 NO/NC Locks,3 Exit buttons
- 3rd Party SIP device compatibility
Specifications
| COMPONENT | SPECIFICATION | Value |
|---|---|---|
| System parameters | Operation System | Android 12 |
| Display parameters | Display Type Operation Method Resolution |
7-inch Colour IPS LCD Touch panel 1024 x 600 pixels |
| Video parameters | Video Codec Video Resolution Image Sensor View Angle Lighting Method Minimum Illuminance |
H.264 Main stream: FHD 1920 x 1080 (Optional: HD 720P , VGA) CMOS 2MP (1920 x 1080) H: 112, V: 60, D:130 White coloured LED light, IR LED 0.01lx (within approx. 50cm from the camera) |
| Audio parameters | Audio Codec Audio Output Audio Input Audio Quality DTMF unlock |
G.711 Built-in loudspeaker Built-in omnidirectional microphone Noise suppression and echo cancellation Support |
| Network Parameters | Wireless network Wiring Network Protocol |
- UTP (Cat 5e or higher) TCP/IP, SIP2.0, RTSP |
| Interface | Network Interface Power Output 12V DC input Relay Lock Wiegand Door Station Port 4-wire input Alarm In Alarm Out (Power Output) Micro SD Card Speaker volume knob CAM standard switch Exit button Unlock way Face Recognition Capacity RFID (Capacity) RFID to unlock |
1(RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)) 1 (12 V / 150 mA output) for lock devices 1 - 2 1 input and 1 output, 12V/150mA output - - - - 1 ( 8-32 GB ) - - 3 Y (Face Recognition / QR code / RFID / Password / Remote unlock with Smartphone/ DTMF) Y (10000 pcs) Y (10000 pcs) ISO/IEC 14443 Type A (MIFARE)(Frequency: 13.56 MHz) (Transmission power: -3.354 dBμA/m(max)@3m) |
| Capacity | Linked IP Camera Text Messages Voice Messages Intercom Logs Alarm Logs Recording |
- - - - - |
| General | Power Source Operating Voltage Current Rating Power Consumption Installation Colour Dimensions (ｍｍ) (H x W x D) Working Temperature Storage Temperature Relative Humidity Ingress Protection Inverse Kinematics Display Language Tamper alarm Motion Detect Face liveliness check External Material Weight |
PoE (IEEE 802.3af compliant, Class 0 device) / DC adaptor 48V POE / 12V DC POE 48V, 0.26A / DC 12V, 0.96A Standby: 6.5 W, Maximum: 12.5 W Flush mounted, embedding box available Black 355 x 160 x 58 -10 ℃ to +55 ℃(14 ℉ to 131 ℉) -20 ℃ to +60 ℃(-4 ℉ to 140 ℉) 10% to 90% RH IP65 IK07 English Support - Liveliness level sensitivity adjustable Aluminum alloy 1.5 kg |
