VL-VQS300SX

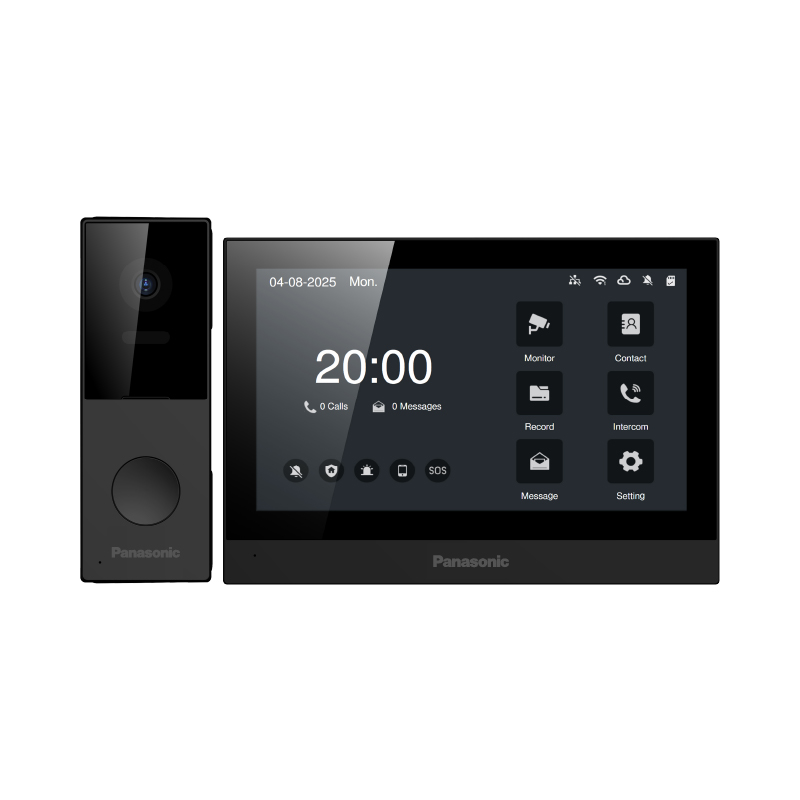

IP SIP Kit ( Room Monitor+ Door Station )
Room Monitor
- 7-inch TN LCD with capacitive Touch Screen
- IP CCTV Camera Integration
- 3rd Party SIP device compatibility (SIP/Alarm/RTSP)
- Built-in Wifi control by Smartphone - IOS & Android
- Auto & Manual Video/Picture recording
- SD Card slot upto 32GB
- Supports 8 alarm Zones
- POE 802.3af
Door Station
- Single button Video Door Station
- 2MP FHD Camera with 120 degree angle
- Noise Suppression and Echo cancellation feature
- Door Lock Release Port
- Night Vision with white LED Lights
- Aluminum Housing with IP65 & IK07 rating
Key Features
Room Monitor
- 7-inch TN LCD with capacitive Touch Screen
- IP CCTV Camera Integration
- 3rd Party SIP device compatibility (SIP/Alarm/RTSP)
- Built-in Wifi control by Smartphone - IOS & Android
- Auto & Manual Video/Picture recording
- SD Card slot upto 32GB
- Supports 8 alarm Zones
- POE 802.3af
Door Station
- Single button Video Door Station
- 2MP FHD Camera with 120 degree angle
- Noise Suppression and Echo cancellation feature
- Door Lock Release Port
- Night Vision with white LED Lights
- Aluminum Housing with IP65 & IK07 rating
Specifications
| Category | Specification | Room | Door |
|---|---|---|---|
| System parameters | Operation System | Embedded Linux OS | - |
| Display parameters | Display Type | 7-inch Colour TN LCD | - |
| Operation Method | Operation Method | - | |
| Resolution | 1024 x 600 pixels | - | |
| Video parameters | Video Codec | H.264 | H.264 |
| Video Resolution | Main stream: FHD 1920 x 1080 (Optional: HD 720P , VGA) | Main stream: FHD 1920 x 1080 (Optional: VGA) | |
| Image Sensor | - | CMOS 2MP (1920 x 1080) | |
| View Angle | - | H120, V62, D145 | |
| Lighting Method | - | White coloured LED light | |
| Minimum Illuminance | - | 0.01lx (within approx. 50cm from the camera) | |
| Audio parameters | Audio Codec | G.711 | G.711 |
| Audio Output | Built-in loudspeaker | Built-in loudspeaker | |
| Audio Input | Built-in omnidirectional microphone | Built-in omnidirectional microphone | |
| Audio Quality | Noise suppression and echo cancellation | Noise suppression and echo cancellation | |
| DTMF unlock | - | - | |
| Network Parameters | Wireless network | - | - |
| Wiring | UTP (Cat 5e or higher) | - | |
| Network Protocol | TCP/IP, SIP2.0, RTSP | - | |
| Interface | Network Interface | 1(RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X) | - |
| Power Output | - | - | |
| 12V DC input | 1 | - | |
| Relay Lock | - | 1 | |
| Wiegand | - | - | |
| Door Station Port | 2 (4-wire) | - | |
| 4-wire input | - | 1 | |
| Alarm In | - | - | |
| Alarm Out (Power Output) | - | - | |
| Micro SD Card | 2 (4-wire) | - | |
| Speaker volume knob | - | 1 | |
| CAM standard switch | - | 1 (Support AHD and CVBS switching) | |
| Exit button | - | - | |
| Unlock way | Unlock way | - | - |
| Face Recognition Capacity | - | - | |
| RFID (Capacity) | - | - | |
| RFID to unlock | - | - | |
| Capacity | Linked IP Camera | Yes (Up to 32) | - |
| Text Messages | Y (up to 100) | - | |
| Voice Messages | Y | - | |
| Intercom Logs | Y (up to 100 ) | - | |
| Alarm Logs | Y (up to 100 ) | - | |
| Recording | Y (100 pcs for picture recording without SD card) Video can be recorded after inserting the SD card. | - | |
| General | Power Source | PoE (IEEE 802.3af compliant, Class 0 device) / DC adaptor | - |
| Operating Voltage | 48V POE / 12V DC | Powered by monitor | |
| Current Rating | POE 48V, 0.32A / DC 12V, 1.15A | DC 14.5V, 0.29 A | |
| Power Consumption | Standby: 3.7 W, Maximum: 15.4 W | Standby: 0 W, Maximum: 4.3 W | |
| Installation | Surface mounted | Surface mounted, corner bracket available | |
| Colour | Black | Black | |
| Dimensions (mm)(H x W x D) | 125 x 180 x 19 | 133 x 48 x 21 | |
| Working Temperature | -10 ℃ to +55 ℃ (14 ℉ to 131 ℉) | -10 ℃ to +55 ℃ (14 ℉ to 131 ℉) | |
| Storage Temperature | -20 ℃ to +60 ℃ (-4 ℉ to 140 ℉) | -20 ℃ to +60 ℃ (-4 ℉ to 140 ℉) | |
| Relative Humidity | 10% to 90% RH | 10% to 90% RH | |
| Ingress Protection | - | IP65 | |
| Inverse Kinematics | - | IK07 | |
| Display Language | English | ||
| Tamper alarm | - | - | |
| Motion Detect | - | - | |
| Face liveliness check | - | - | |
| External Material | PC +ABS | Support (Logs recorded on Room Monitor) | |
| Weight | 2.40 kg (TBD) | 0.22 kg (TBD) |
