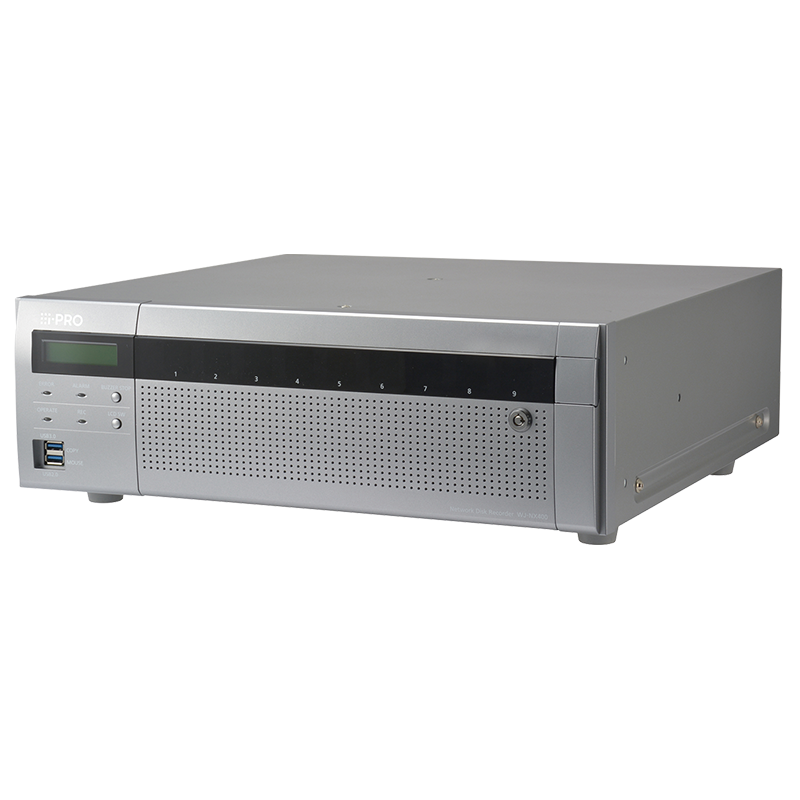

WJ-NX400
Network Recorder
H.265/H.264 Embedded recorder
- Secure & High Compression Recording
- PC-less non-VMS surveillance solution
- Scalable storage
- High reliability and high efficiency data reading/writing
Key Features
• H.265, H.264, and JPEG multi format
• Robust embedded IP security enabling a secure end-to-end PC-less surveillance solution
• Support full data encryption streaming recording for all i-Pro Extreme cameras which comply to FIPS 140-2 Level 1 standards
Secure high bandwidth recording
- 64 ch. expandable to 128 ch. camera input. Support H.265 / H.264 mixed recordings.
- 640 Mbps total through put (including 384 Mbps recording bandwidth)
- DigiCert (formerly Symantec) device certificates pre-installed
PC-less non VMS surveillance solution
- No camera license fees, no annual license updates required
- Built-in GUI and Dual HDMI (4K/FHD) outputs
- Automatic camera coniguration
- Sub-stream recording for mobile access and low bandwidth system environments
Scalable storage
- (9) integrated drive-bays RAID 5/6
- External storage expansion up to 324 TB
High reliability and redundancy
- Dynamic HDD power management increases HDD life
- Redundant fail-over using 2 nd recorder to enable seamless mission-critical recording *
- NVR backup important data to NAS devices *
- TURBO-RAID for quick RAID recovery without sacrificing recording bandwidth and performance
* KMS registration is necessary for activation
Specifications
Supported Camera
| COMPONENT | SPECIFICATION |
|---|---|
| Compatible Vendor | i-PRO series Network cameras, ONVIF NVT conformant camera and encoder |
| Supported Image Format | H.265(HEVC), H.264, JPEG |
| Supported Image Resolution | ・Aspect ratio [4 : 3] 4,000x3,000, 2,560x1,920, 2,048x1,536, 1,280x960, 800x600, 640x480 ・Aspect ratio [16 : 9] 3,840x2,160, 2,560x1,440, 1,920x1,080, 1,280x720, 640x360 ・Aspect ratio [1 : 1] 2,992x2,992, 2,816x2,816, 2,048x2,048, 1,280x1,280 ・Aspect ratio [9 : 16] 1080x1920, 720x1280, 360x640 |
| Supported Audio Format | G.711 for Onvif, G.726 (ADPCM) 32 kbps |
| Maximum Number of Cameras | MAX. 128 (Default number of cameras : 64) |
Recording
| COMPONENT | SPECIFICATION |
|---|---|
| Recording Mode | Event, Schedule, Emergency |
| Pre-Alarm Recording | Up to 15 seconds *When the delivery speed from the network camera is less than 3 Mbps. |
| Sub-Stream Recording | 768 kbps (fixed data size) |
| Scheduled Recording Mode | 16 programs, 3 time zones/day, Independent setup for each day of the week |
| Frame Rate/Camera | Up to 60 ips (Depending on the camera) |
Main Unit Functions
| COMPONENT | SPECIFICATION |
|---|---|
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper (for WV-SUD638) |
| Multiscreen Mode | [Main monitor] ・Control screen 4 / 9 / 16 split screen display ・Wide view screen 3 / 4 / 6 / 9 / 12 / 16 / 24 / 32 / 64 split screen display, 1 screen sequence, 4 / 9 / 16 split screen sequence [Sub monitor] 9 / 16 / 32 split screen display, 1 screen sequence, 4 / 9 / 16 split screen sequence |
| Playback Control | Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image |
| Search Mode | Search criteria : Time date, Playback by designating a timeline, VMD, Thumbnail |
| Copy | Recorded data of selected cameras and time date range can be copied to the USB storage. |
| Camera Title | Up to 16 Characters |
| Clock Display | Time : 12H/24H, Date : 5 formats |
| Digital Zoom | Live/Play : 2x, 4x (only for 1-screen) |
| System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
| 360 Camera Dewarp | Only 1ch display mode |
| Re-Encoding | 2Client *Only when 64 ch mode |
| Image Download | Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately. |
| SD Memory Data Download | Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264) |
| GUI Language | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simplified Chinese, Japanese |
| Required PC | CPU : IntelR Core. i7-860 or faster , RAM : 4 GB or more, VRAM : 128 MB or more (Min. 64 MB), MicrosoftR DirectXR 9.0c or later |
| User Registration | Up to 32 users |
| User Level | 3 Levels (Programmable) |
| Partitioning | User level - Camera (View & Control, No Access) |
| Security Method | User authentication (ID and Password), Host authentication, Alteration detection, SSL/TLS |
Alarm/Event
| COMPONENT | SPECIFICATION |
|---|---|
| Alarm Source | 32x Terminal inputs, 128x Camera alarms (i-PRO Alarm Protocol), 128x Command alarms |
| Event Mode | Off / On |
| Alarm Action | Alarm recording, e-mail notification, Alarm message, Camera positioning, Terminal output, i-PRO alarm protocol output, Buzzer, Indicator |
| Event Log | 1000 |
Input/Output
| COMPONENT | SPECIFICATION |
|---|---|
| Spot Output Connector | 1x 1 V [p-p] / 75 Ω (BNC) NTSC /PAL (selectable in setup menu) |
| Monitor (HDMI) Connector | [Main monitor] HDMI 4K UHD(3840x2160p)/30Hz, 4K UHD(3840x2160p)/25Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1920x1080i /60Hz, 1920x1080i /50Hz, 720x576p /50Hz, 720x480p /60Hz [Sub monitor] HDMI 1920x1080p /60Hz, 1920x1080p /50Hz, 1920x1080i /60Hz, 1920x1080i /50Hz, 720x576p /50Hz, 720x480p /60Hz |
| Audio Output Connector | -10 dBv, 600 Ω, unbalanced x1 (RCA pin jack) |
| Alarm IO | Alarm input 1 - 32, Alarm output, Alarm reset input 1 – 4 |
| Control IO | Time adjustment input, 2x +5 V output |
| Error/Warning IO | Network error output, HDD error output, Camera error output, Recorder error output, Recording error output, Emergency recording input, Outage detection input, External recording mode switching input, Outage processing end output |
| Mouse Connection Port | 2 (Front 1, Rear 1) |
| Camera/PC Network Port | 2x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ45) |
| Maintenance Network Port | 1x 10BASE-T / 100BASE-TX (RJ45) |
| USB Storage | USB 3.0 / USB 2.0 memory, USB 3.0 / USB 2.0 connected HDD (except bus powered device) |
| External Storage | 5x WJ-HXE400 |
Network
| COMPONENT | SPECIFICATION |
|---|---|
| Maximum Recording Rate | 384 Mbps or less |
| Maximum Band Width | Total 640 Mbps or less |
| Supported Protocol | IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP IPv6 : ICMPv6 |
| Upon Alarm or Warning | |
| No. of Simultaneous Users | 16 or less |
Other Functions
| COMPONENT | SPECIFICATION |
|---|---|
| Time Synchronization | Terminal (Slave), NTP (Server/Client) |
| Summer Time | User definable (using menu setup) |
| Remote Monitoring on Smartphone/Tablet | 2Client |
HDD
| COMPONENT | SPECIFICATION |
|---|---|
| HDD | 8.89 cm (3.5 inch) Serial ATA HDD, Up to 9x HDDs can be installed. |
| Maximum Capacity | 54 HDD slots (with 5x WJ-HXE400 Extension Units, 9x HDDs installed in each unit) Up to 6 TB will be supported. |
| RAID (Hardware RAID) | Single, RAID1, 5, 6 |
Viewer Software
| COMPONENT | SPECIFICATION |
|---|---|
| Additional Functions | Alteration detection, Save as JPEG, Two times zoom, Print, Copy |
| Supported OS, Language | Language of the software will be English or Japanese |
General
| COMPONENT | SPECIFICATION |
|---|---|
| Safety/EMC Standard | WJ-NX400K : UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065),DOC (ICES003 ClassA) WJ-NX400K/G : CE (EN60065, EN55032 ClassB, EN55024), EAC |
| Power Source | WJ-NX400K : 120 V AC 60 Hz / WJ-NX400K/G : 220 V - 240 V AC 50 Hz/60 Hz |
| Power Consumption | approx. 125 W (with 6 TB HDD x9) |
| Ambient Operating Temperature | Main body : +5 °C to +45 °C (41 °F to 113 °F) Mouse (provided) : +5 °C to +40 °C (41 °F to 104 °F) |
| Ambient Operating Humidity | 5 % to 90 % (without condensation) |
| Maximum Operating Altitude | 2,000 m (6,562 feet) above sea level |
| Dimensions | 430 mm (W) x 132 mm (H) x 400 mm (D) {16-15/16 inches (W) x 5-3/16 inches (H) x 5-12/16 inches (D)} |
| Mass (Approx.) | When no HDD is installed : 11.5 kg {25.4 lbs} / When 9 HDDs aer installed : 20 kg {44.1 lbs} |
